Hardness testerRockwell & Brinell Link RBDPro Series

  • hoytom-link-rbd-hardness-tester
  • hoytom-link-rbd-hardness-tester-2
  •  3 year warranty

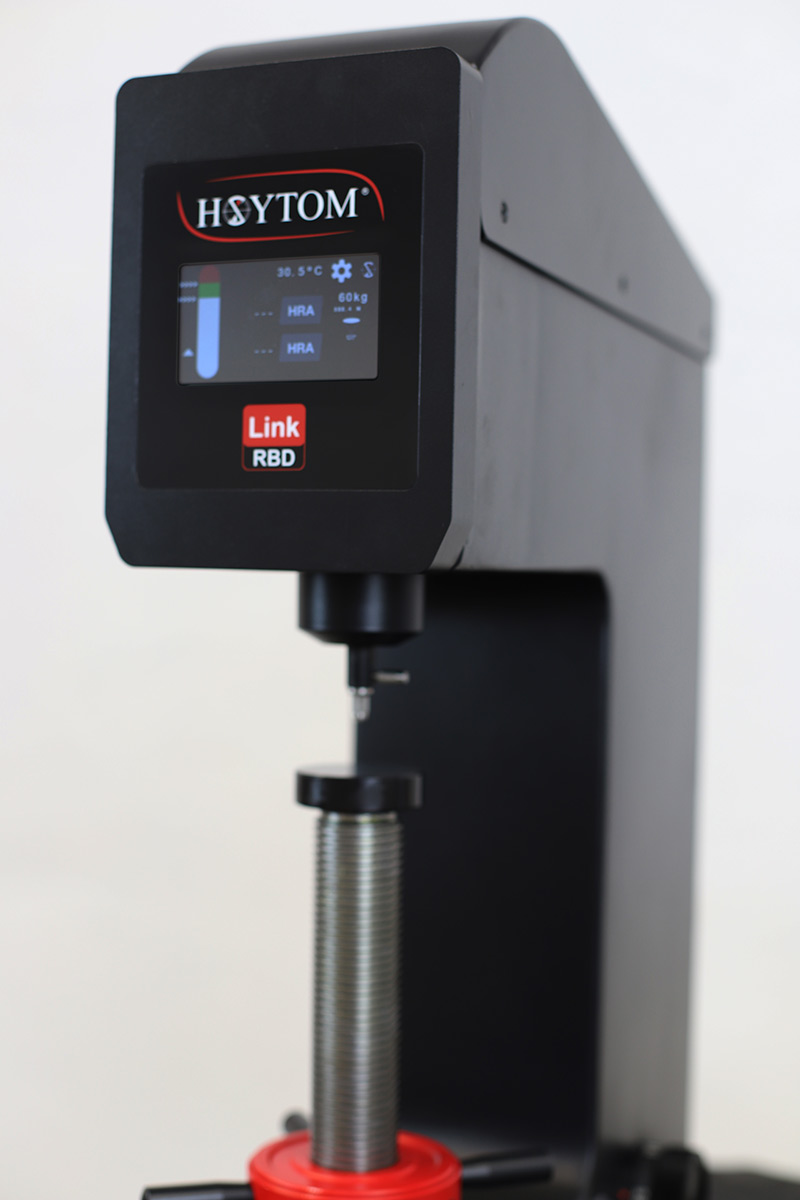

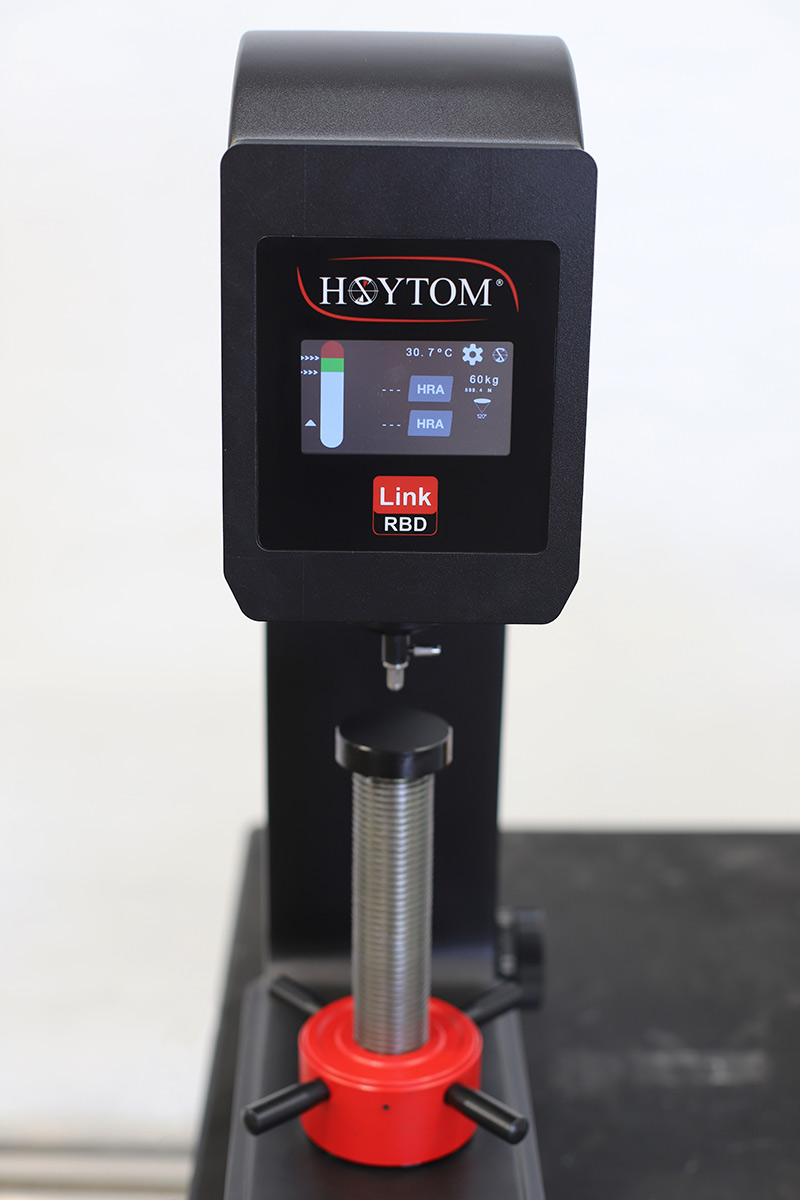

MODEL Rockwell & Brinell Link RBD

HOYTOM® PRO Series

The Link RBD model is a Rockwell hardness tester that is capable of applying loads of 60, 100 and 150 Kg. It also has additional loads for Brinell tests (31.25, 62.5 y 187.5 Kg.

Loads are applied via a motor. Loads are easy to select using a rotary controller, and application speed is controlled via motor. Data display via touch screen.

Request further information

  1. Selectable Rockwell and Brinell loads
  2. Load selection via rotary controller
  3. Loads applied via motor
  4. Resolution: 0.01 HRC/HRB...
  5. Conversions between different methods
  6. Built-in room temperature thermometer

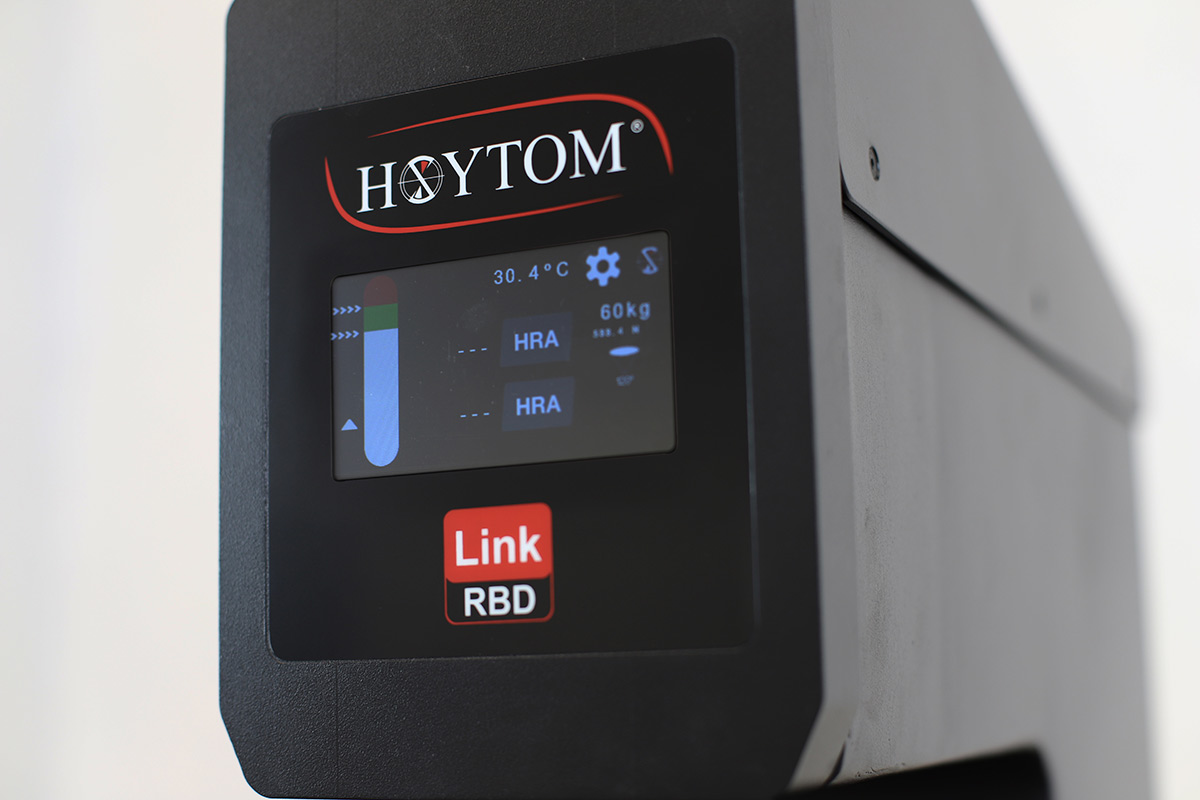

  7. Touch screen
  8. USB data output for integration into customer’s test programme
  9. Simple and intuitive operation
  10. Included accessories: - Rockwell indenter / Ball 1/16” - Rockwell indenter / Diamond cone - Brinell indenter / Ball Ø2.5 mm -  Spare balls - Rockwell template (HRC, HRB) - Horizontal support table Ø72 mm - Flat support table Ø150 mm (Optional) - V-shaped support table Ø40 mm - Case with accessories - Instruction manual - Brinell conversion tables

Technical characteristics

ModelLink RB
PreloadKg10
Rockwell loadsKg60 - 100 - 150
Brinell loadsKg31.25 - 62.5 - 187.5
Vertical capacitymm170
Goose neck (Horizontal)mm165
Dimensions (W x D x H)mm215 x 520 x 700
Net weightKg100
Power supplyV220

Download technical file

Standards

EN ISO 6508, ASTM E18, EN ISO 6506, ASTM E10
