Hardness testerRockwell Minor R & Minor SPro Series
MODEL Rockwell Minor R & Minor S
HOYTOM® PRO Series
The Minor-R and Minor-S models are quick and simple hardness testers, that enable direct readings to be taken using the Rockwell and Rockwell superficial scales respectively.

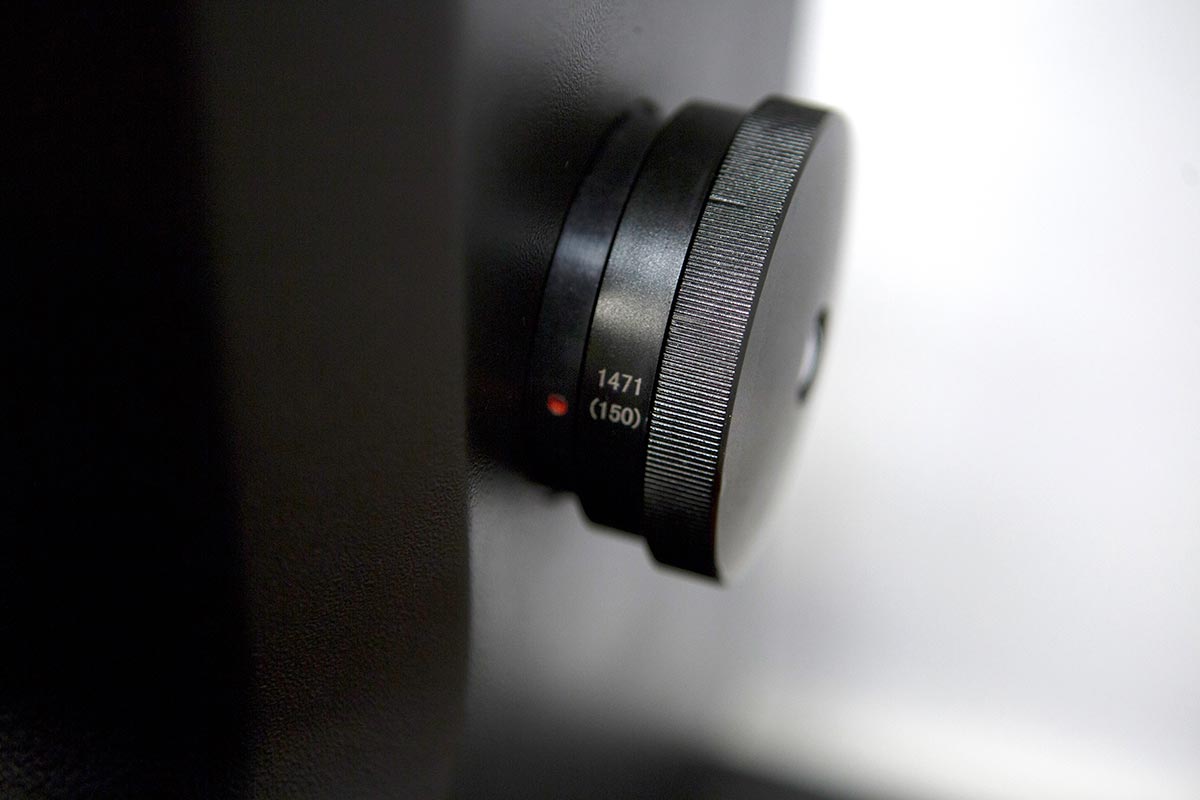

Test loads applied via the incorporated lever and weights system. Loads are easily selectable via a rotary dial.
3 year warranty
When you purchase a Hoytom machine it comes with a 3 year warranty. Hoytom machines are manufactured according to the most stringent standards.
Optional accessories
Technical characteristics
| Model | Minor R | Minor S |
|---|---|---|

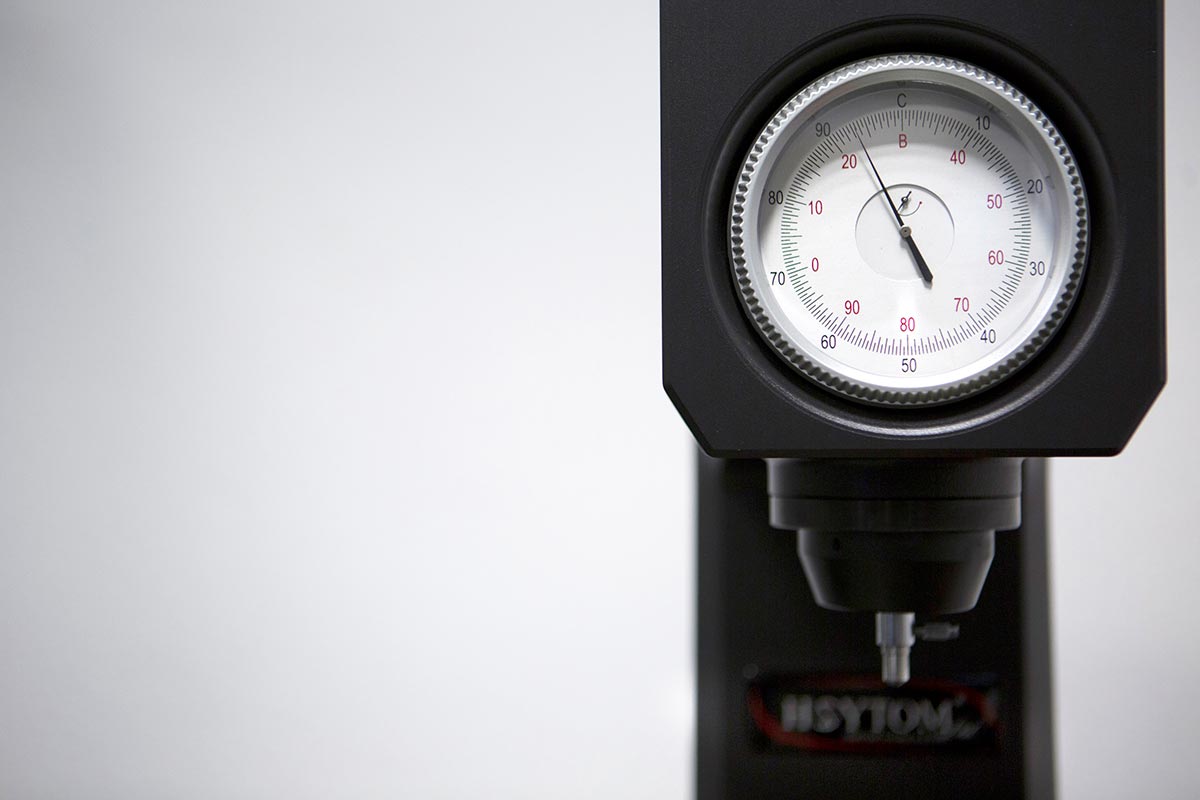

| Read-out system | Analogue | |
| PreloadKg | 10 | 3 |
| LoadsKg | 60 - 100 - 150 | 15 - 30 - 45 |
| Vertical capacitymm | 175 | |
| Goose neck (Horizontal)mm | 165 | |
| Dimensions (WxDxH)mm | 550 x 185 x 760 | |
| Packaging (WxDxH) mm | 625 x 465 x 875 | |
| Net weight Kg | 100 | |
Standards
EN ISO 6508, ASTM E18
Request further information
If you are interested in this product, please complete the form and we will contact your as soon as possible, to provide you with all of the information you need.
