Hardness testerRockwell & Brinell Link RBPro Series
MODEL Rockwell & Brinell Link RB
HOYTOM® PRO Series
The Link RB model is a Rockwell hardness tester that is capable of applying loads of 60, 100 and 150 kg. It also has additional loads for Brinell tests (31.25, 62.5 and 187.5 kg). Loads are applied via a motor. Loads are easy to select using a rotary controller, and application speed is controlled via motor.
- Selectable Rockwell and Brinell loads

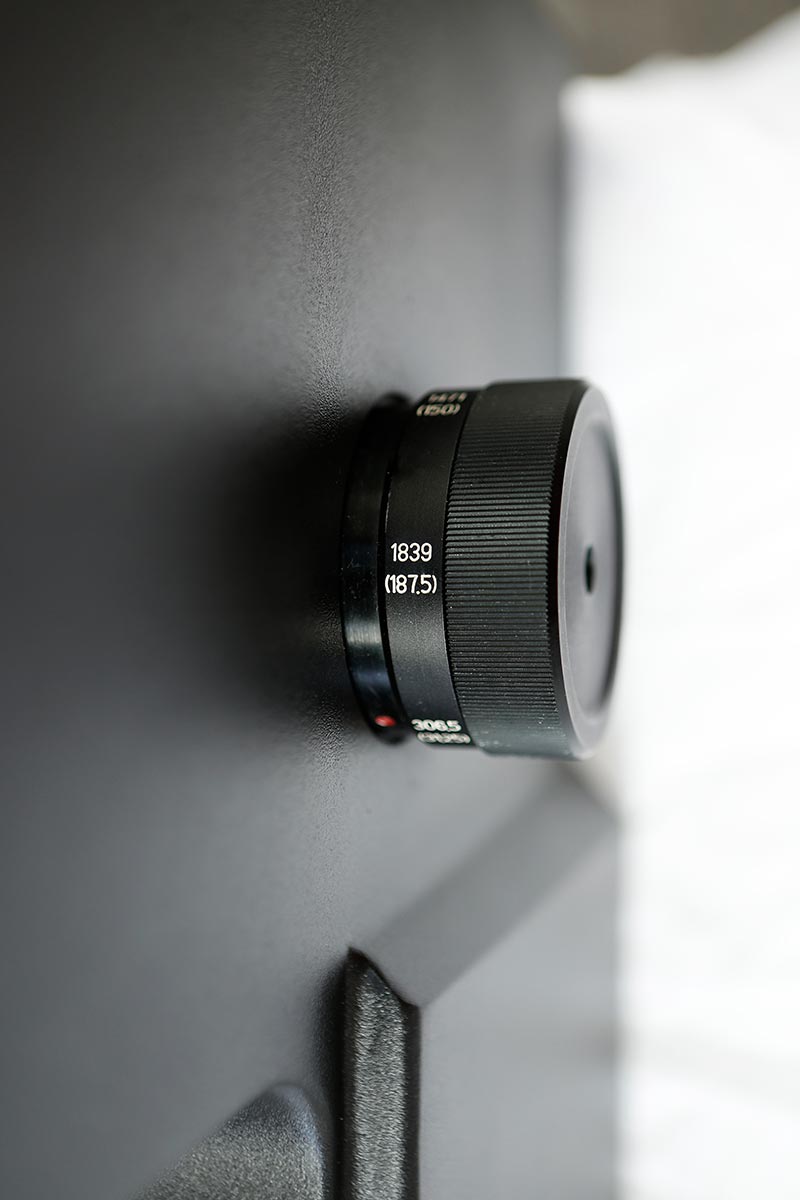

- Load selection via rotary controller
- Loads applied via motor

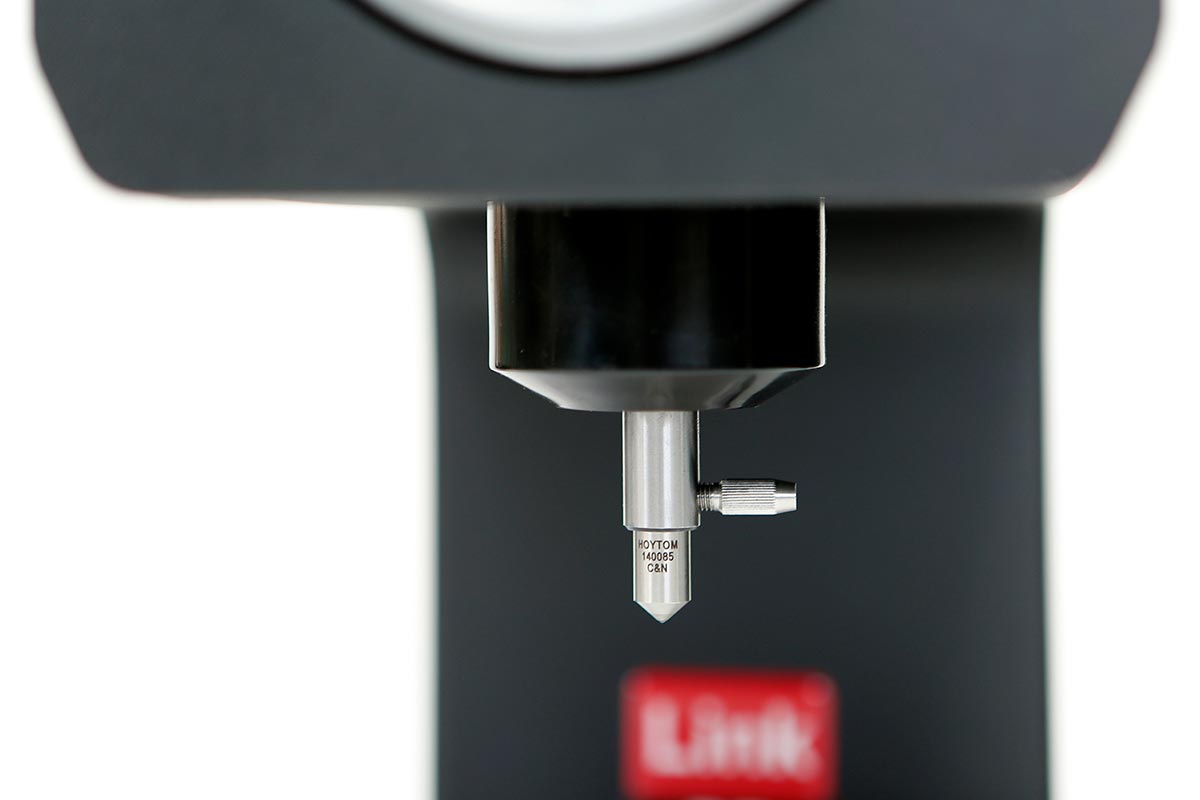

- Included accessories: - Rockwell indenter / Ball 1/16” - Rockwell indenter / Diamond cone - Brinell indenter / Ball Ø2.5 mm - Spare balls - Rockwell template (HRC, HRB) - Horizontal support table Ø72 mm - Flat support table Ø150 mm (Optional) - V-shaped support table Ø40 mm - Case with accessories - Instruction manual - Brinell conversion tables
3 year warranty
When you purchase a Hoytom machine it comes with a 3 year warranty. Hoytom machines are manufactured according to the most stringent standards.
Optional accessories
Technical characteristics
| Model | Link RB |
|---|---|
| PreloadKg | 10 |
| Rockwell loadsKg | 60 - 100 - 150 |
| Brinell loadsKg | 31.25 - 62.5 - 187.5 |
| Vertical capacitymm | 170 |
| Goose neck (Horizontal)mm | 165 |
| Dimensions (W x D x H)mm | 215 x 520 x 700 |
| Net weightKg | 100 |
| Power supplyV | 220 |
Standards
EN ISO 6508, ASTM E18, EN ISO 6506, ASTM E10
