Hardness testersRockwell CiHo SRDLab Series

  •  3 year warranty
  • HBM load cells
  • HoyWin

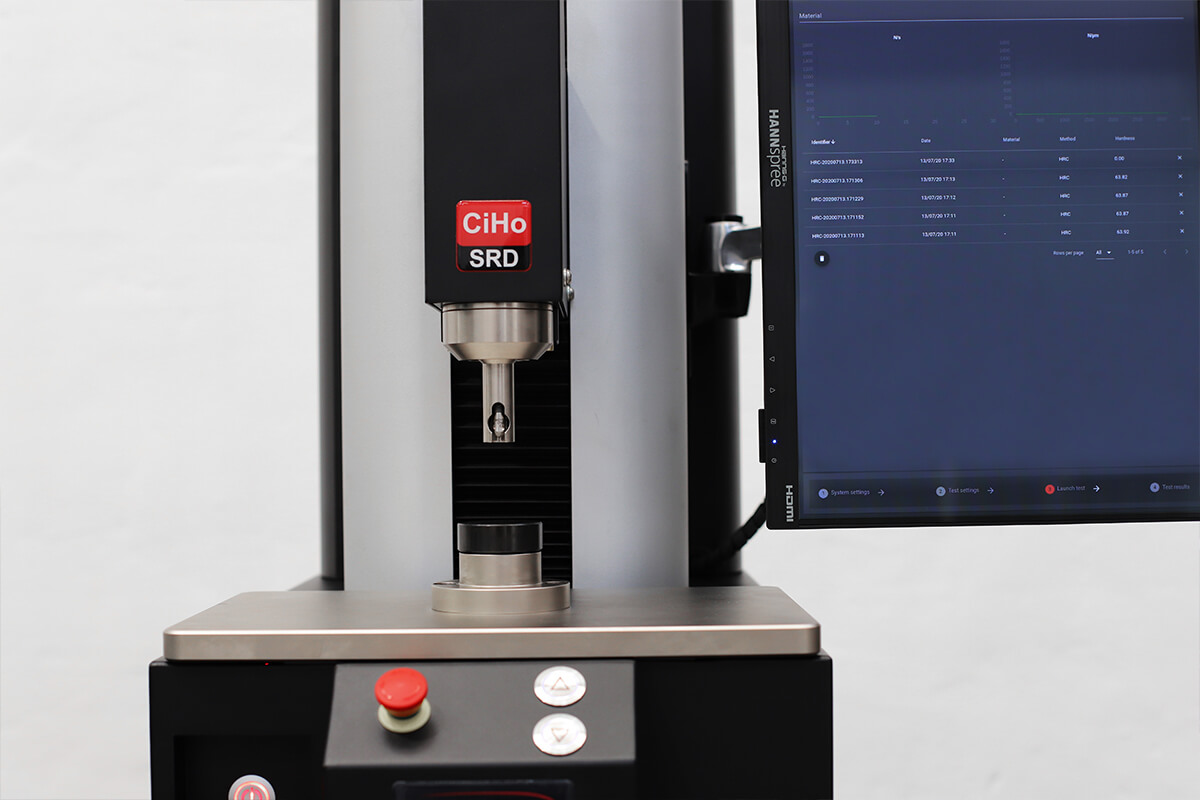

MODEL Rockwell CiHo SRD

HOYTOM® LAB Series

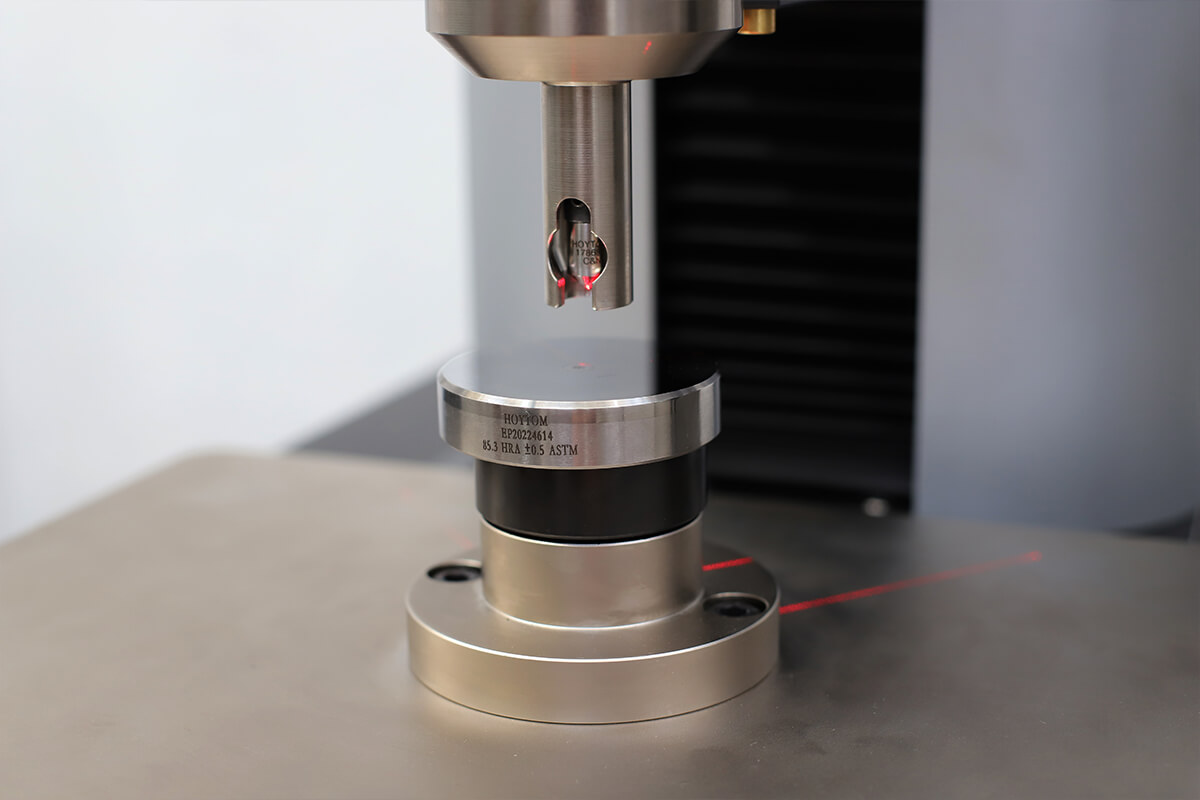

This model has been developed to perform tests using the Rockwell scale (with loads of 60, 100 and 150 kp), and the Rockwell superficial scale (loads of 15, 30 and 45 kp), but can also apply additional loads for other tests, como Brinell o Vickers. It is comprised of a motorised frame, which includes the load application systems (which employ a computer controlled force transducer).

Indentation depth is measured by a sensor with a resolution of 0.1 microns (0.0001 mm).

The Rockwell system is used to test parts made of metal, plastic, rubber, etc.

Request further information

  1. Touch screen with internal industrial PC
  2. HBM® load cellinternational leader in this technology
  3. Direct read-out on 22” touch screen
  4. Statistical calculations (average, deviation, travel, etc.)
  5. Results in .pdf reports and .csv format

Technical characteristics

Preloads Kgf3 y 10
Rockwell superficial scale loads Kgf15, 30 y 45
Rockwell scale loads Kgf60, 100 y 150
Brinell loads Kgf31.25, 62.5, 125, 187.5 and 250
Vickers loads Kgf3, 5, 10, 20, 30, 60 and 100
Load application speedAutomatically adjusted
Test load selectionVia touch screen
Load cellHBM® (international leader in this technology)
Vertical capacity mm350
Goose neck (horizontal)160
Dimensions (WxDxH) mm731 x 396 x 975
Weight kg150

Download technical file

Standards

EN ISO 6508, ASTM E18

See more

EN ISO 6506, ASTM E10, EN ISO 6508, ASTM E18
