Pendulum impact testerHyTT CHARPY OR IZOD FOR PLASTICPro Series
MODEL CHARPY OR IZOD
HOYTOM® PRO Series
The Hoytom tabletop pendulum impact tester has been designed to test plastics and composites according to the Charpy or Izod impact testing standards. It is available in capacities from 2 to 25J. It is operated via a simple and intuitive touch screen. Its octagonal guard includes a polycarbonate door, which meets the requirements for CE marking and Standard ISO 13802.
- Available capacities: ISO 2, 4, 5, 7.5, 15, 25 / ASTM 2.7, 5.4, 10.8, 21.6 / IZOD 2.75, 5.5, 11, 22
- Automatic brake
- Automatic test initiation upon closure of polycarbonate guard door

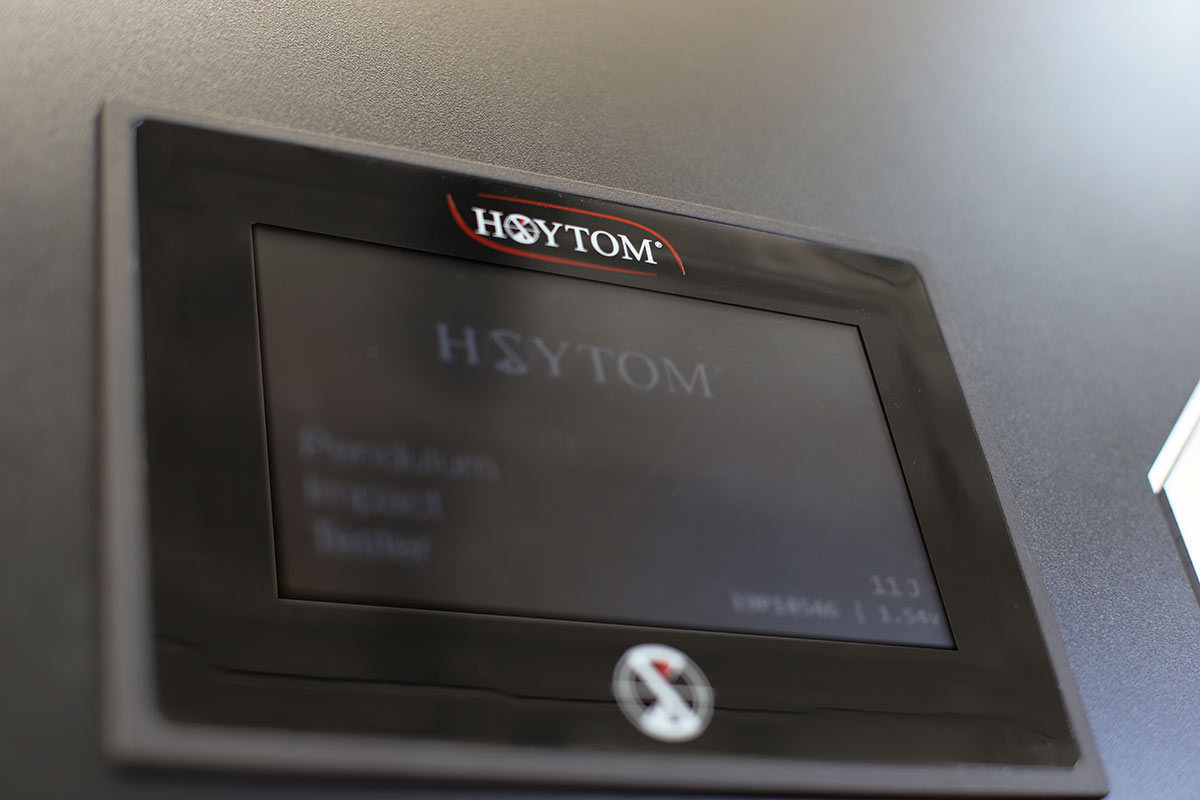

- Simple operation via touch screen

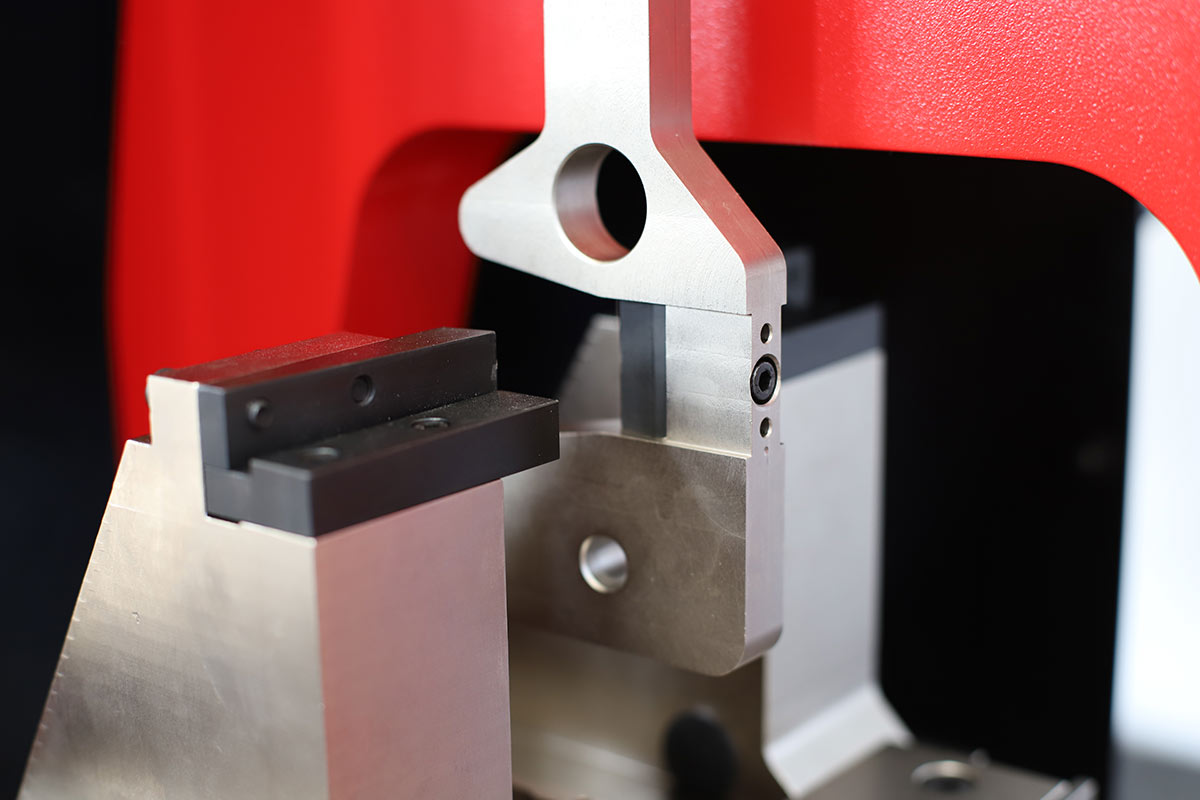

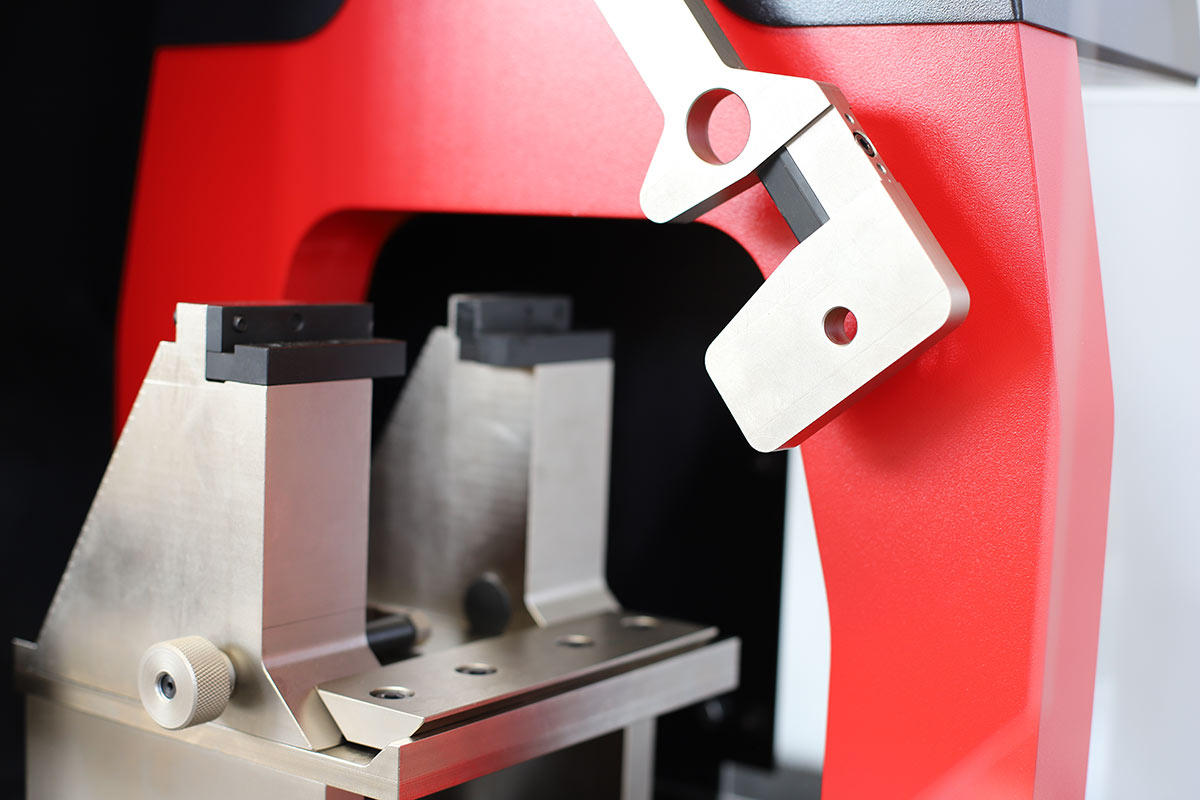

- Charpy impact blades according to ASTM or ISO
3 year warranty
When you purchase a Hoytom machine it comes with a 3 year warranty. Hoytom machines are manufactured according to the most stringent standards.
Technical characteristics
| Capacity up to 25 J | ISO Charpy | ASTM Charpy | ISO/ASTM Izod | |
| Pendulum length mm | Up to 5J 230 | From 5J 340 | 340 | 340 |
| Máxima velocidad de impacto m/s | Up to 5J 2.9 | From 5J 3.46 | 3.46 | 3.46 |
| Resolution Joules | 0.01 | |||
| Dimensions (W x D x H) mm | 1000 x 600 x 1000 | |||
| Optional Table Dimensions (W) mm | + 700 | |||
| Net weight Kg | 200/300 | |||
| Power V | 110-220 | |||
Standards
EN ISO 13802
See more
ASTM D256/A, ASTM D256/B, ASTM D4812, ASTM D6110, DIN 179-1, DIN 180, EN 179-1, EN 180, ISO 179-1, ISO 180, UNE 179-1, UNE 180, EN ISO 13802
